Products
Browse our full range of hydraulic products
CA 50 Series Radial Piston Hydraulic Motor
CA 50 series compact radial piston motor, displacement 1,256β3,140 cc/rev, specific torque 20β50 Nm/bar. Stationary housing with rotating hollow shaft for direct drive mounting. Ideal for rubber/plastics machinery, winches, crushers. Smooth operation down to 0.5 rpm with starting torque β₯90%.
CA 70 Series Radial Piston Hydraulic Motor
CA 70 series offers wider torque options, displacement 2,512β4,400 cc/rev, specific torque 40β70 Nm/bar. Modular design with multiple displacements in same frame. Widely used in injection molding, extruders, marine deck machinery.
CA 100 Series Radial Piston Hydraulic Motor
CA 100 series delivers higher torque, displacement 2,512β6,280 cc/rev, specific torque 40β100 Nm/bar. Ultra-high torque at moderate speeds for mobile crushers, shredders, mixers. Five displacement options in same frame.
CA 140 Series Radial Piston Hydraulic Motor
CA 140 series is the backbone of large-displacement radial piston motors, displacement 5,024β8,800 cc/rev, specific torque 80β140 Nm/bar. For large crushers, shredders, rotary kilns, ball mills. Excellent low-speed performance and shock resistance.
CA 210 Series Radial Piston Hydraulic Motor
CA 210 series is the largest CA model, displacement 10,051β13,200 cc/rev, specific torque 160β210 Nm/bar. Designed for the most demanding applications: large mine crushers, TBM cutter head drives, large marine propulsion.
CB 280 Series Radial Piston Hydraulic Motor
CB 280 series heavy-duty radial piston motor, displacement 15,100β17,600 cc/rev, specific torque 240β280 Nm/bar, max torque 92 kNm. Multi-row piston design for smooth power delivery. For large mining equipment, steel/metallurgy machinery, large winches.
CB 400 Series Radial Piston Hydraulic Motor
CB 400 series is the most widely applied heavy-duty motor, specific torque 240β560 Nm/bar, max torque 130 kNm, max power 970 kW. Nine displacements covering 15,100β35,200 cc/rev. For TBMs, large crushing stations, deep-sea winches, large rotary kilns.
CB 560 Series Radial Piston Hydraulic Motor
CB 560 series is the largest CB model, specific torque 440β560 Nm/bar, max torque 180 kNm, max power 970 kW. Extra-large frame for higher torque capacity. For ultra-large mining equipment, offshore platforms, large TBMs.
CBP 140 Series High-Power Radial Piston Motor
CBP 140 series high power density radial piston motor, displacement 5,024β8,800 cc/rev, specific torque 80β140 Nm/bar, max speed 400 rpm. Higher speed and power in a compact frame, ideal for mobile and space-constrained heavy equipment such as mobile crushers, forestry machinery, scrap handling.
CBP 280 Series High-Power Radial Piston Motor
CBP 280 series balances torque and speed in a mid-size frame, displacement 10,100β17,600 cc/rev, specific torque 160β280 Nm/bar, max speed 170 rpm. For construction machinery, port equipment, mining conveyors requiring both torque and speed.
CBP 400 Series High-Power Radial Piston Motor
CBP 400 series delivers exceptional power output, displacement 15,100β25,100 cc/rev, specific torque 240β400 Nm/bar. Full torque at 170 rpm for paper machinery, large shredders, scrap shears and other high-power applications.
CBP 560 Series High-Power Radial Piston Motor
CBP 560 series is a core model in the high-power class, displacement 27,600β35,200 cc/rev, specific torque 440β560 Nm/bar. Full torque at 135 rpm continuously for large semi-mobile crushing stations, large shredding equipment, heavy material handling.
CBP 840 Series High-Power Radial Piston Motor
CBP 840 series is the largest CBP model, displacement 37,700β52,800 cc/rev, specific torque 600β840 Nm/bar, max power 3,166 kW. Designed for ultra-large industrial drives with seven displacement options. For large mine SAG mills, mega crushing stations, large marine propulsion.
CBM 2000 Series Ultra-Large Radial Piston Motor
CBM (Compact Magnum) 2000 series ultra-large radial piston motor, specific torque 1,000 Nm/bar, max torque 330 kNm. Magnum technology platform delivers massive torque in a relatively compact frame. For large mine ball mills, SAG mills, large rotary kilns. DNV offshore compliant.
CBM 4000 Series Ultra-Large Radial Piston Motor
CBM 4000 series with specific torque 2,000 Nm/bar, max torque 660 kNm. Takes Magnum technology to the next level, providing drive solutions for the world's largest industrial equipment. For large SAG mills, semi-mobile crushing stations, deep-sea mining, offshore platform positioning.
CBM 6000 Series World's Largest Radial Piston Motor
CBM 6000 series is the world's largest radial piston hydraulic motor, specific torque 3,000 Nm/bar, max torque 990 kNm, max power 2,393 kW. Represents the pinnacle of hydraulic motor technology, providing the ultimate drive solution for extreme-duty mega equipment. For world-class mega SAG mills, giant offshore wind installation platforms, super-large TBMs.
MB 400 Series Marathon Radial Piston Motor
MB 400 series classic Marathon heavy-duty motor, displacement 25,145 cc/rev, specific torque 400 Nm/bar, max torque 130 kNm. Proven Marathon technology with decades of validation in mining, metallurgy, marine. For heavy crushers, winches, rotary kilns requiring rock-solid reliability.
MB 800 Series Marathon Radial Piston Motor
MB 800 series large-frame Marathon motor, displacement 17,768β50,265 cc/rev, specific torque 283β800 Nm/bar. Multiple rotary group options in same frame for flexible torque-speed trade-off. Low displacement variant reaches 130 rpm, high displacement variant delivers 260 kNm. For mining, metallurgy, large material handling.
MB 1600 Series Marathon Radial Piston Motor
MB 1600 series mega-torque Marathon model, displacement 86,392β100,529 cc/rev, specific torque 1,375β1,600 Nm/bar, max torque 520 kNm. Designed for ultra-high torque low-speed drives. For mega mine grinding mills, giant rotary kilns, large offshore winches.
MB 3200 Series Marathon Ultra-Large Motor
MB 3200 series ultra-large Marathon model, displacement 201,059 cc/rev, specific torque 3,200 Nm/bar, max torque 1,040 kNm. The largest Marathon motor globally, representing decades of technological accumulation. For world's largest mining equipment, giant offshore platforms, ultra-large construction machinery.

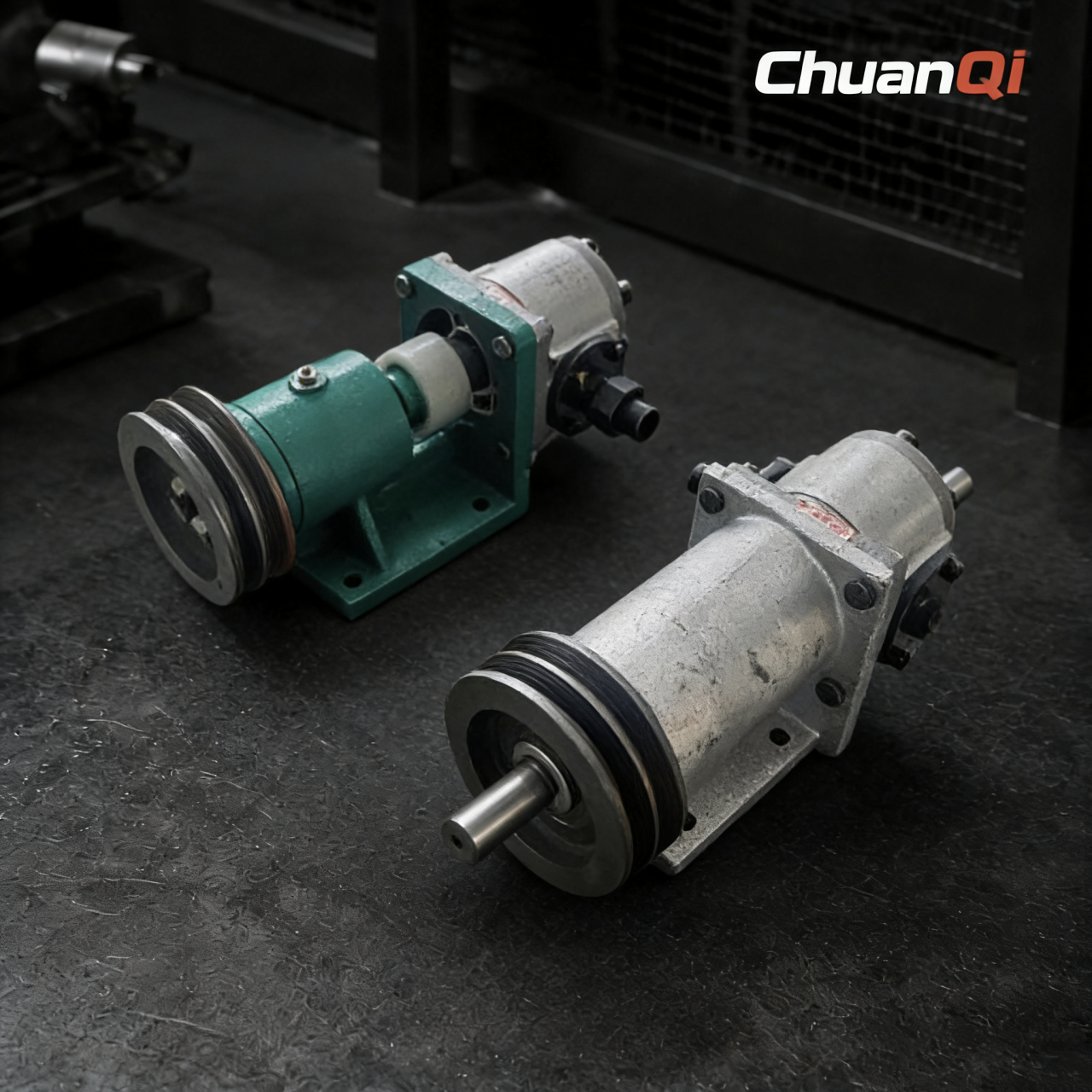

CBP-32 Gear Hydraulic Pump
CBP-32 series external gear pump with simple structure and high reliability. Widely used in various hydraulic systems to provide stable flow output.
CBP-63 Gear Hydraulic Pump
CBP-63 series gear pump with larger displacement design, suitable for hydraulic systems requiring medium to high flow.

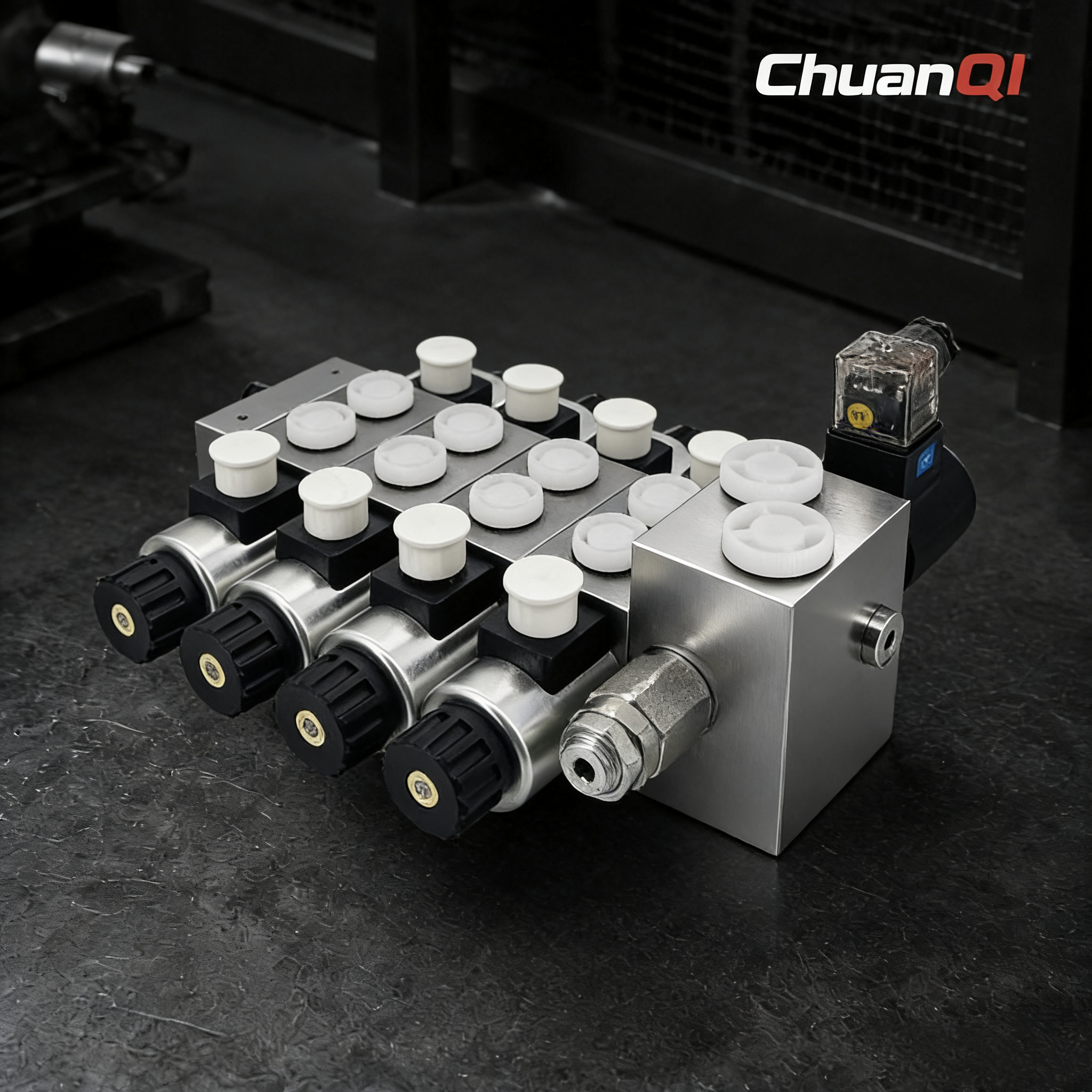

Industrial Hydraulic Valve
Industrial hydraulic valve series covers directional valves, pressure valves and flow valves. Available in subplate or sandwich mounting, suitable for all types of industrial hydraulic systems. High-performance solenoids with fast response and high reliability. Widely used in injection molding machines, die casting machines, metallurgical equipment.
Mobile Hydraulic Valve
Mobile hydraulic valve specially designed for construction machinery, agricultural machinery, sanitation vehicles and other mobile equipment. Sectional monoblock valve structure, flexible combination of 1-12 sections. Manual, hydraulic pilot or electro-hydraulic proportional control available.

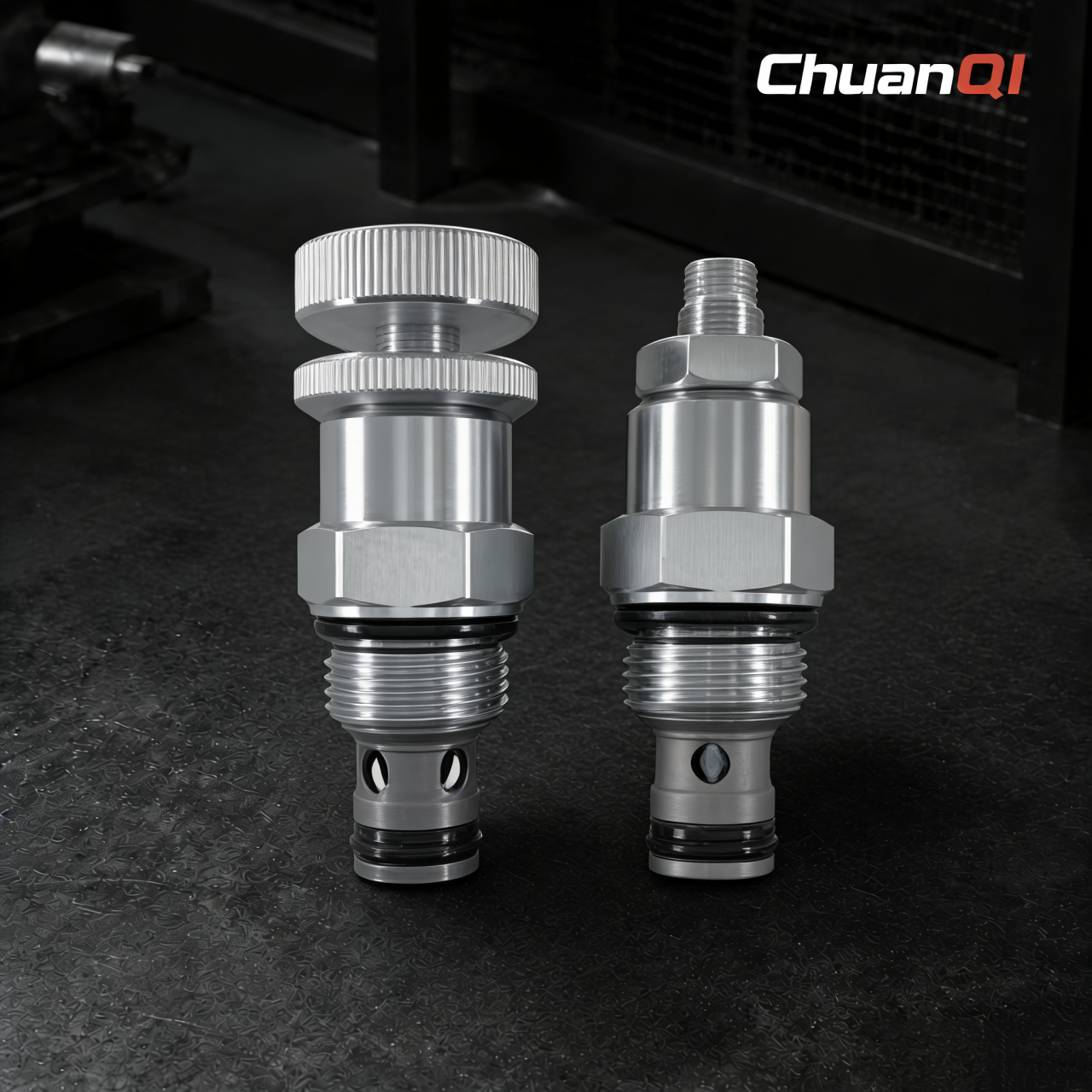

Screw-in Cartridge Valve
Screw-in cartridge valve series includes relief valves, check valves, flow control valves, solenoid directional valves etc., with standard threaded cavity installation. Compact size, light weight, low leakage. Ideal for integrated manifold design. Widely used in industrial hydraulic integrated blocks and compact hydraulic systems.

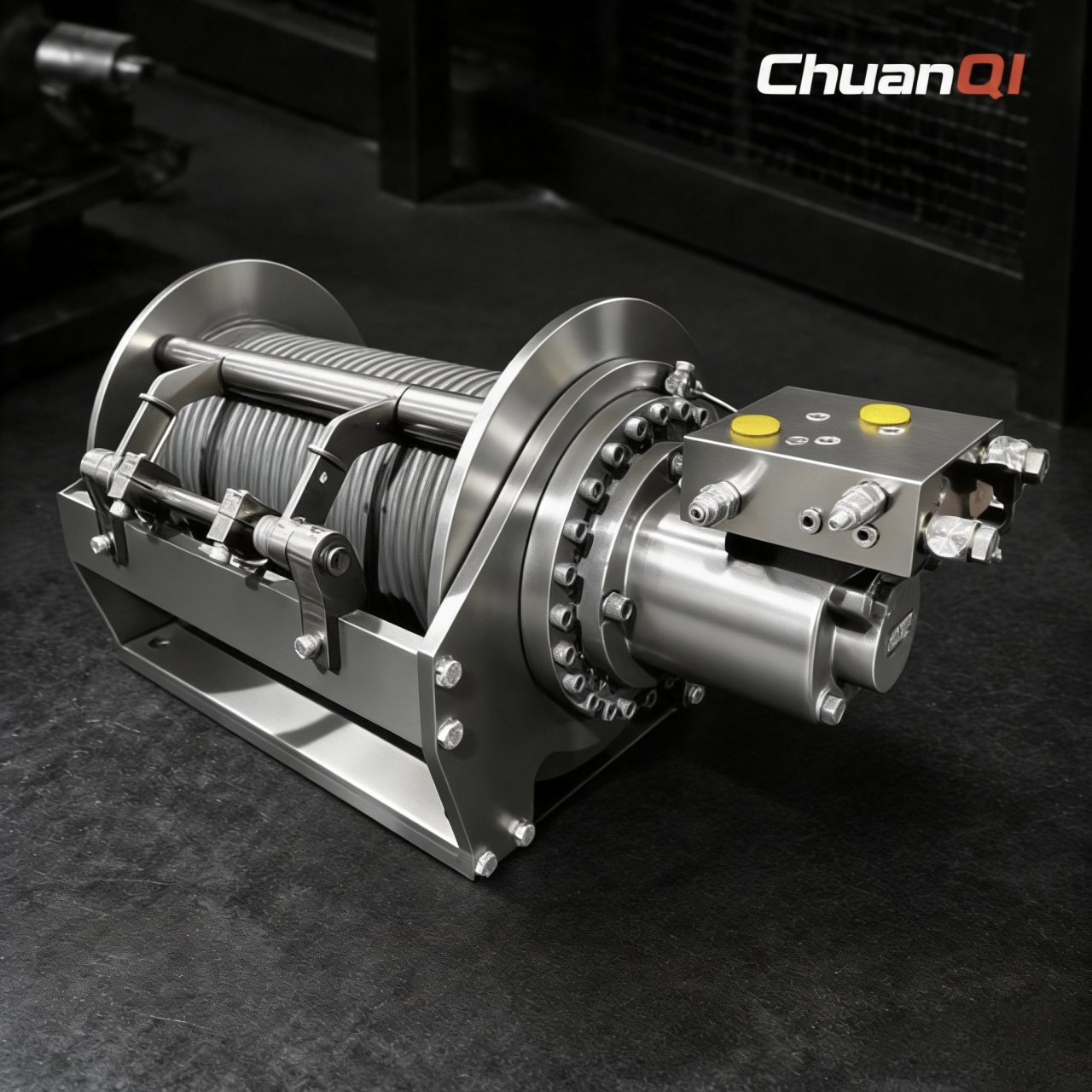

Hydraulic Winch
HW series hydraulic winch designed for heavy-duty pulling, lifting and towing operations. Direct drive by radial piston motor eliminates gearbox, resulting in compact and reliable structure. Available with built-in brake, free fall, limit switch options. Widely used in mining, marine, construction and forestry.

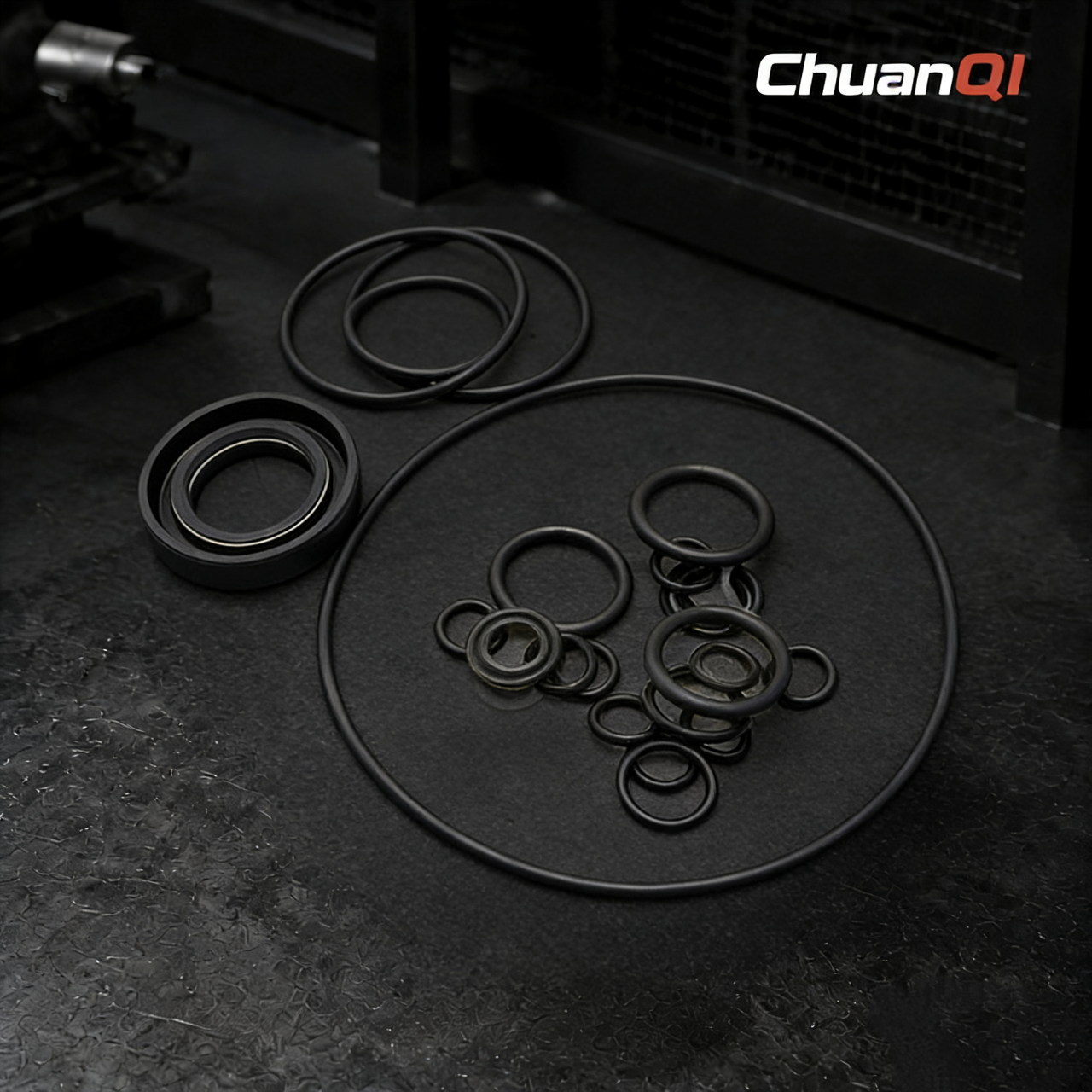

CA/CB/CBP/MB Series Seal Repair Kit
Seal repair kit for CA 50β210, CB 280β560, CBP 140β840, MB 400β3200 all series radial piston hydraulic motors. Complete seal set with Viton/NBR materials.
